TECHNICAL CHARACTERISTICS
- Microprocessor operation
- Iron-constantana thermocouple(J)protected input
- Adjustment range 0-999°C
- Cold junction compensation

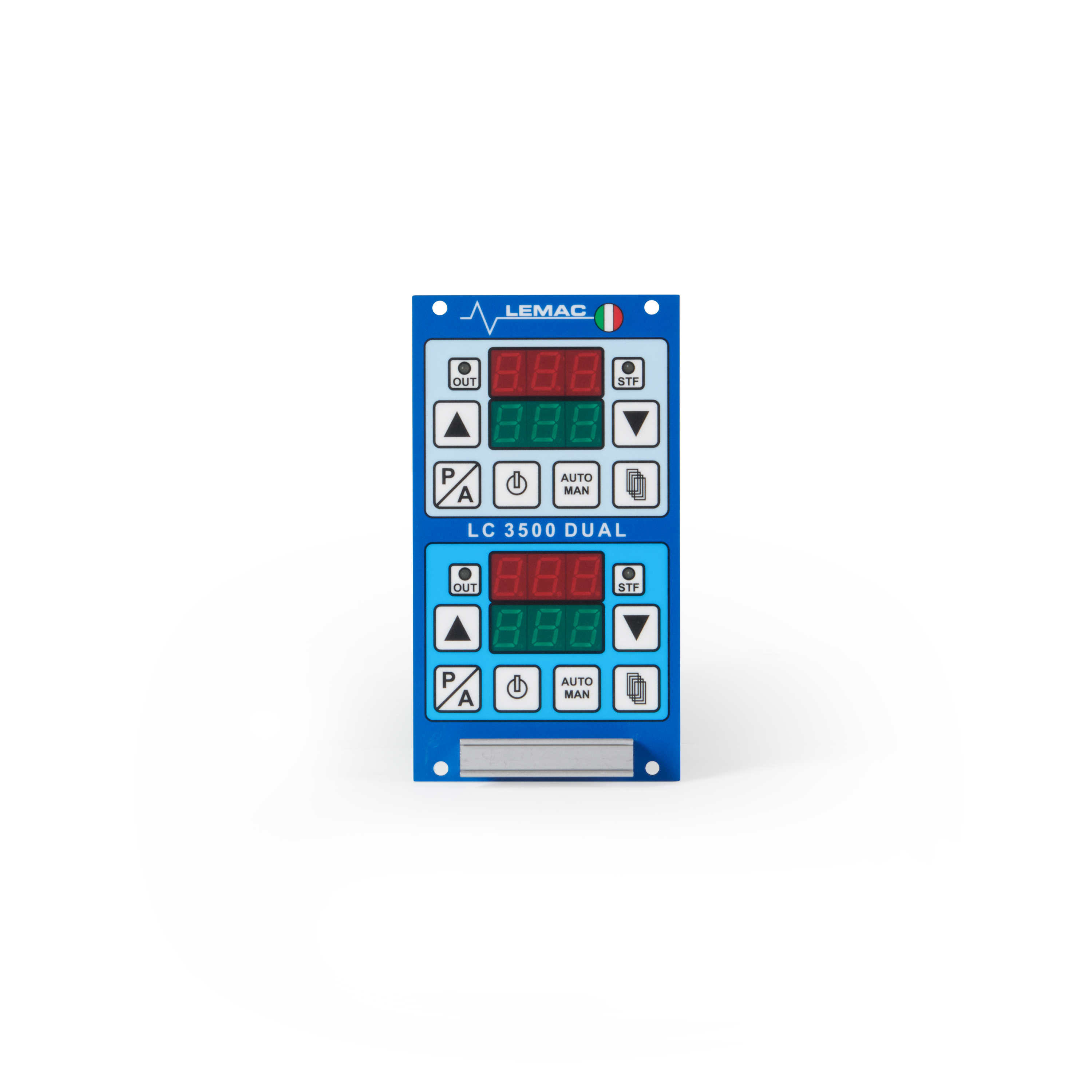

- Display of temperature, parameters and functions via dual 6-digit displays
- Data setting with membrane keyboard
- Automatic/manual operation
- Static output with ZERO-CROSSING switching system
- Maximum power 3500W per zone
- Extra-rapid protection fuse FF 16 A per zone
- Management of max and min temperature and limit temperature alarms
- Pre-heating function at 100 °C with LED signalling
- Alarm and diagnostic display
- Copy button for quick settings and boost and stand-by functions on all zones
- Automatic separation into 2 working groups with LED signalling
- Direct display of groups with editing possibilities
- Power circuit opening safety relay per zone
- Load current reading per zone
- Percentage reading of instantaneous power output per zone
- Reading of instantaneous consumption power (KW) delivered per zone
- Storage of the percentage value of the power supplied at steady state until a new thermoregulation is performed
- STF= Signalling LED for temporary functions Bost,Stand-By
- PID parameter self-learning system
- HBD = Indication of load condition through current reading with temperature reference
- Paired zone function Master (leader zone) / slave (paired zone)
- Front pull-out
DESCRIPTION

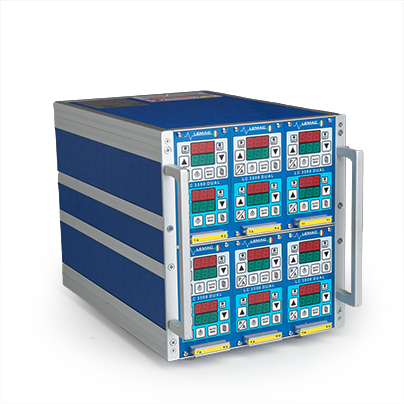

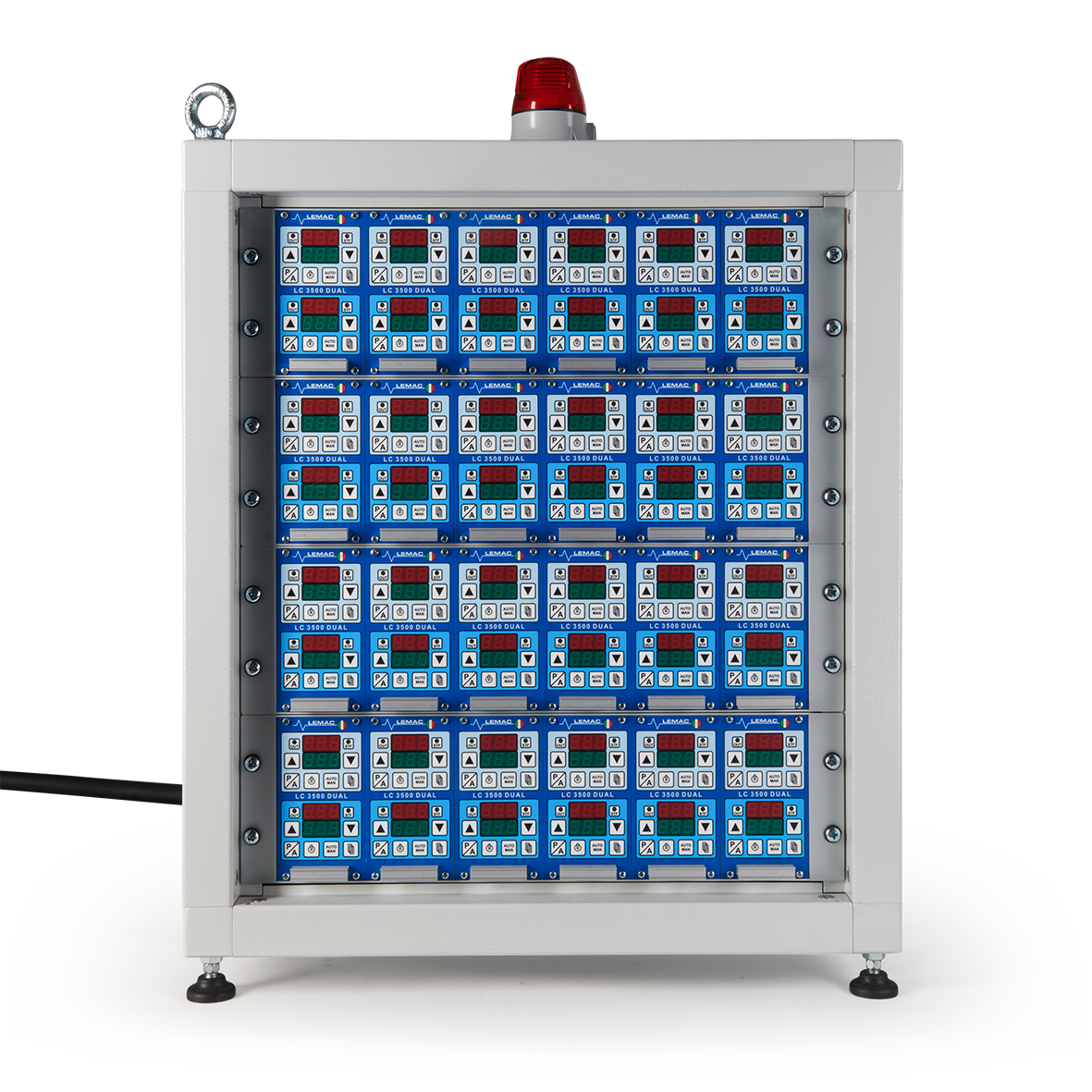

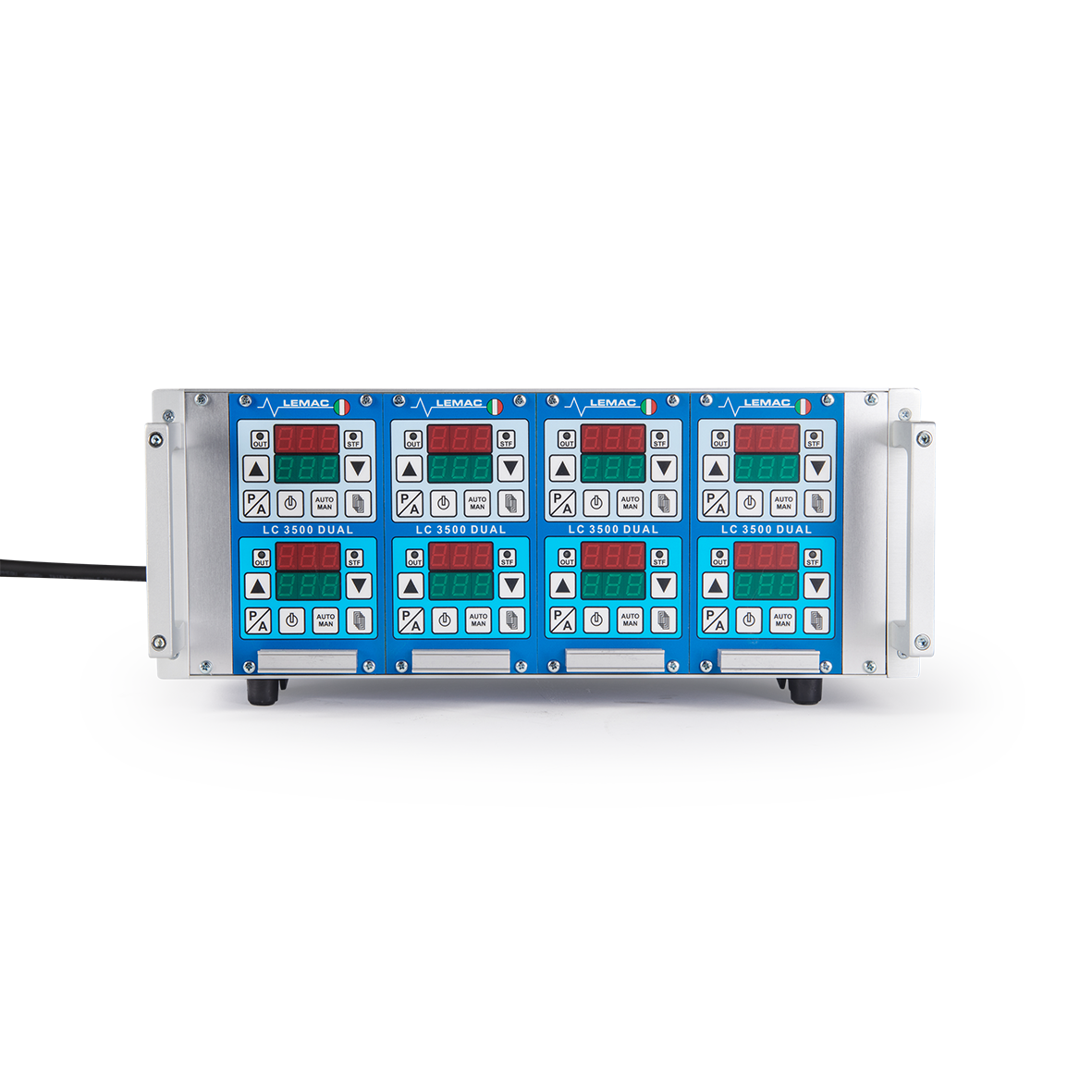

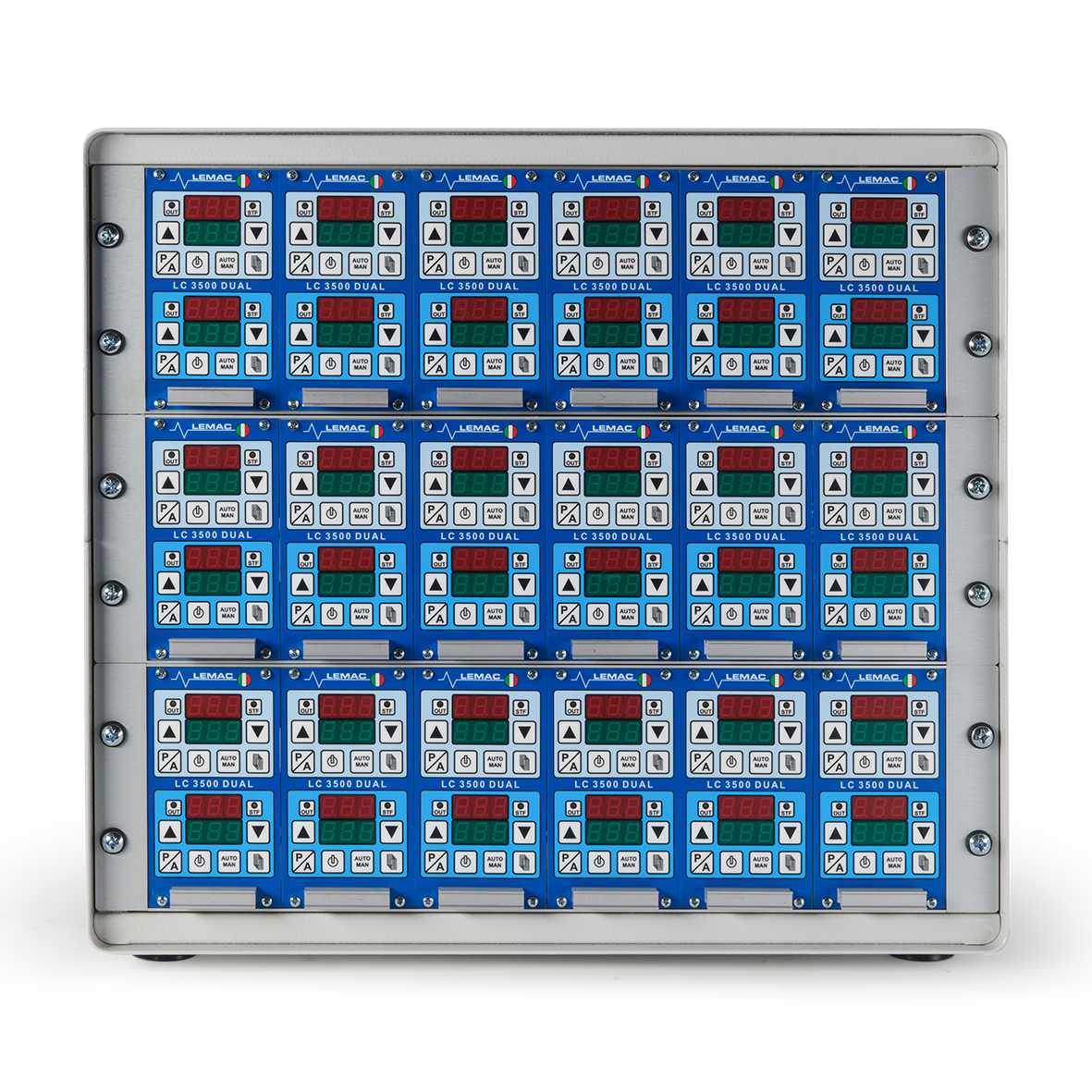

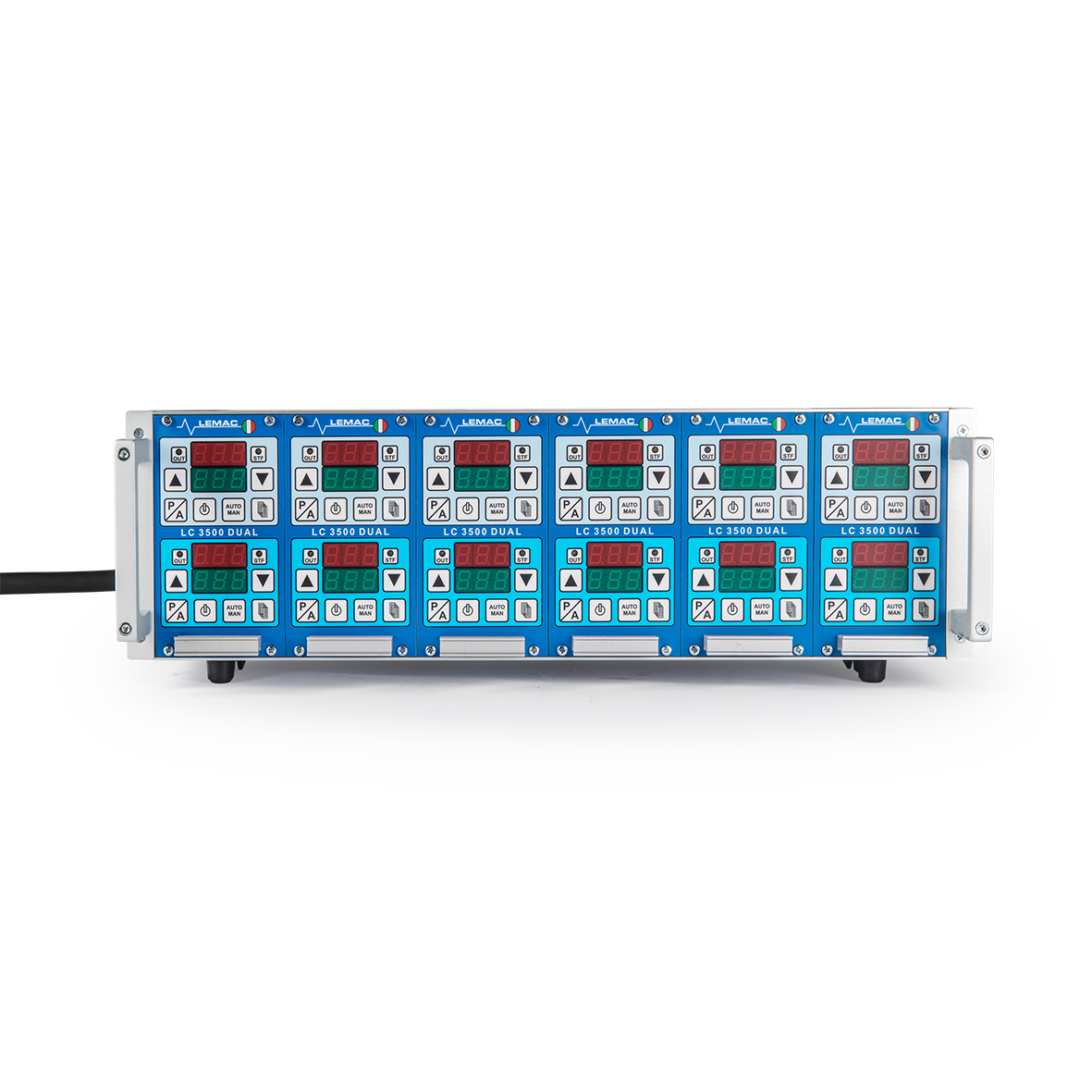

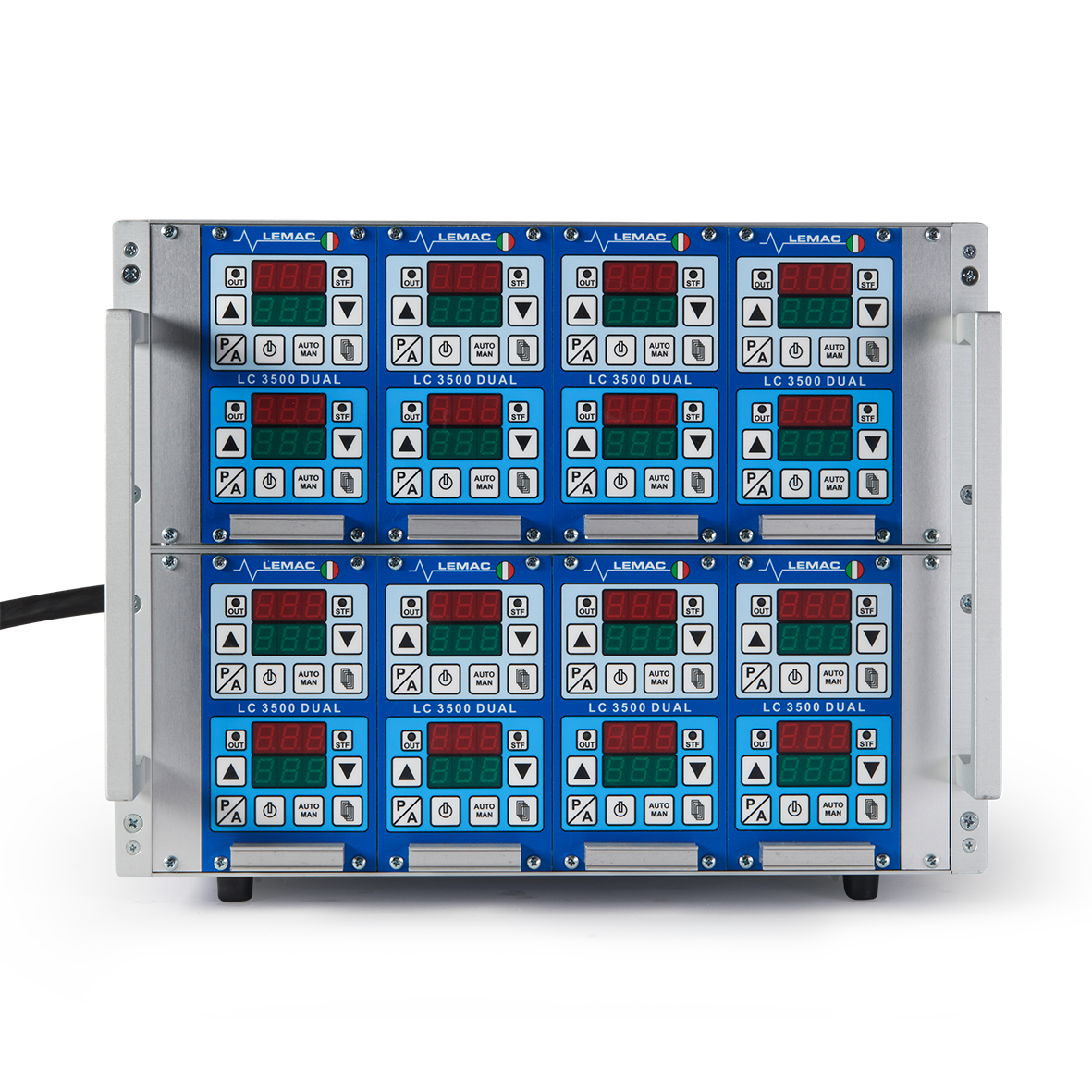

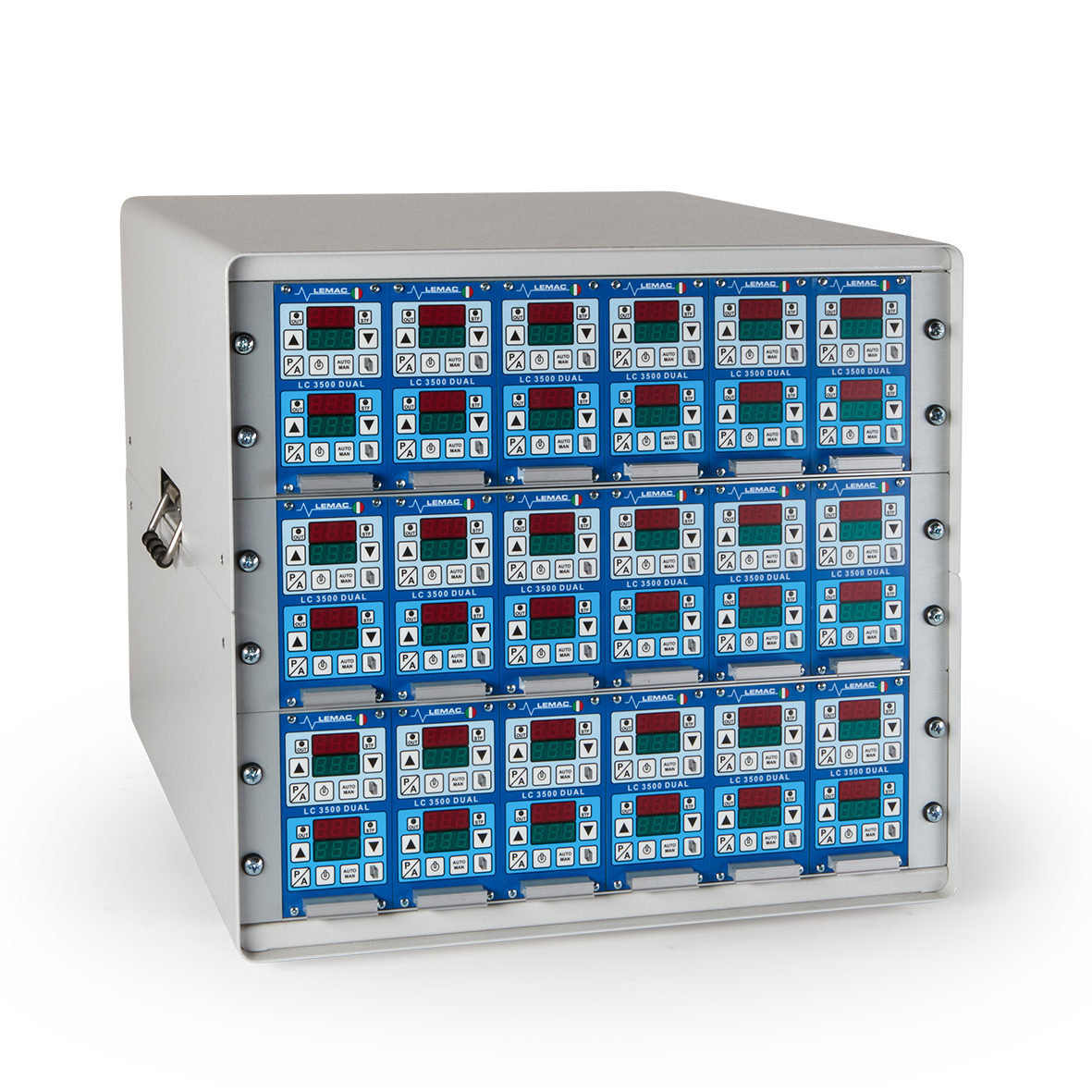

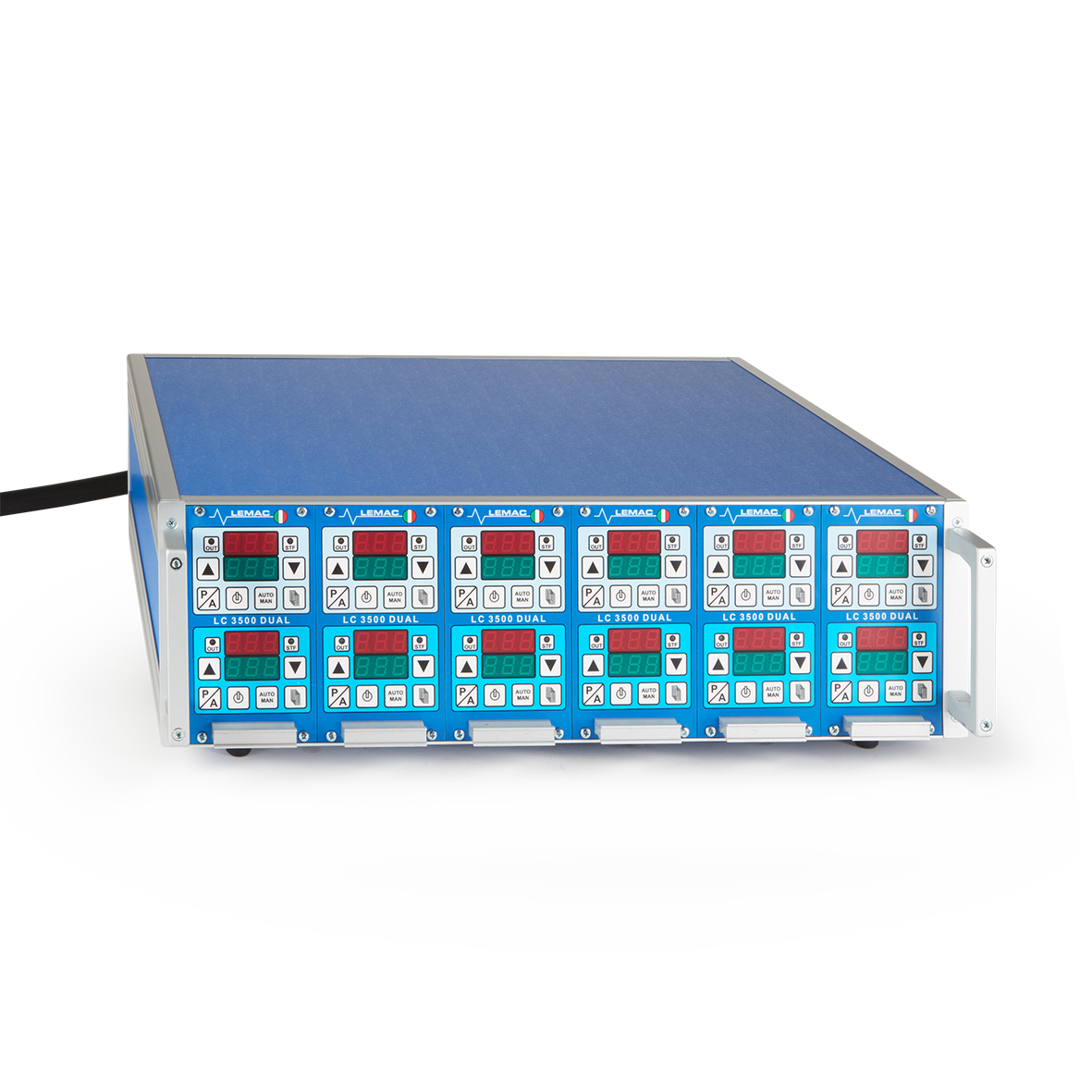

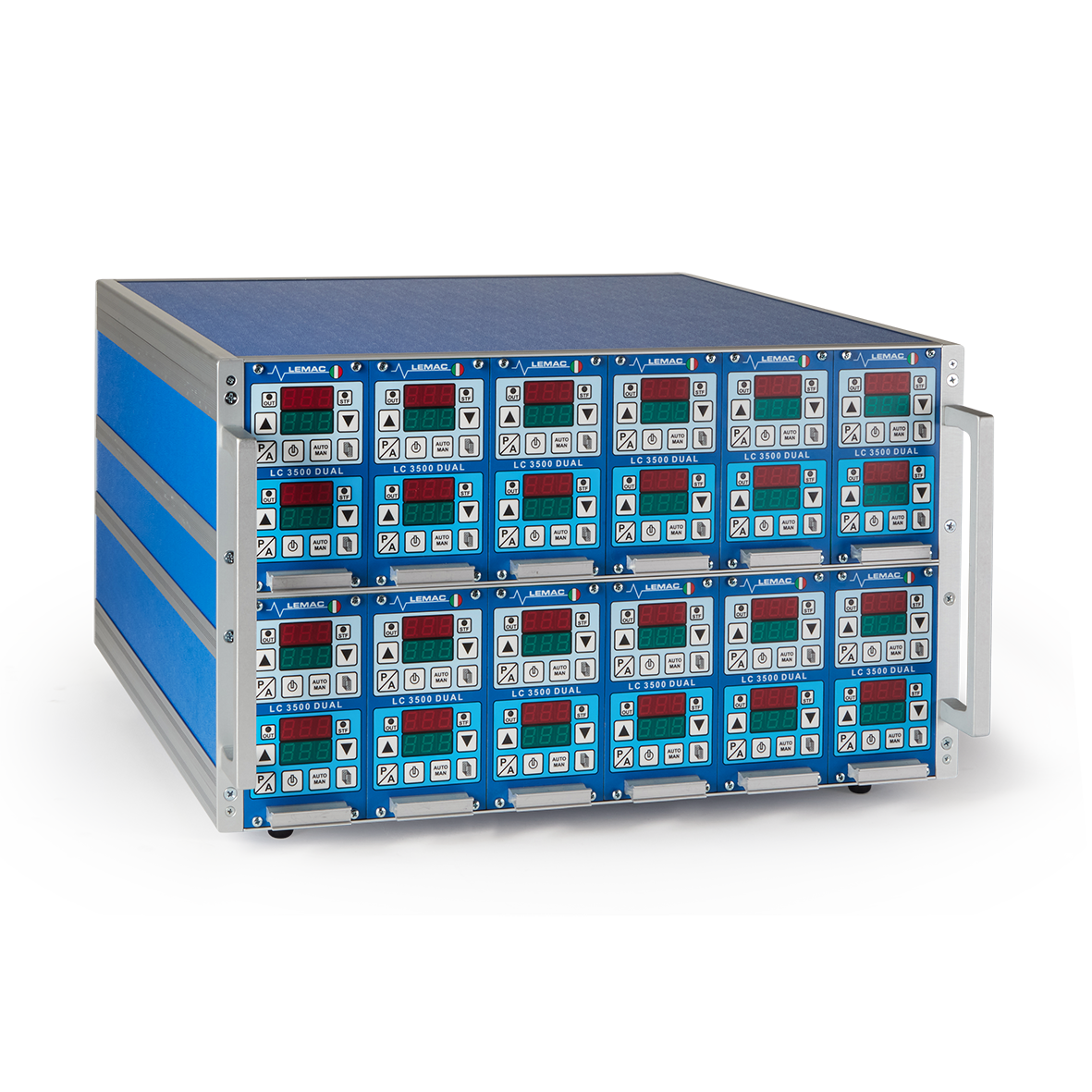

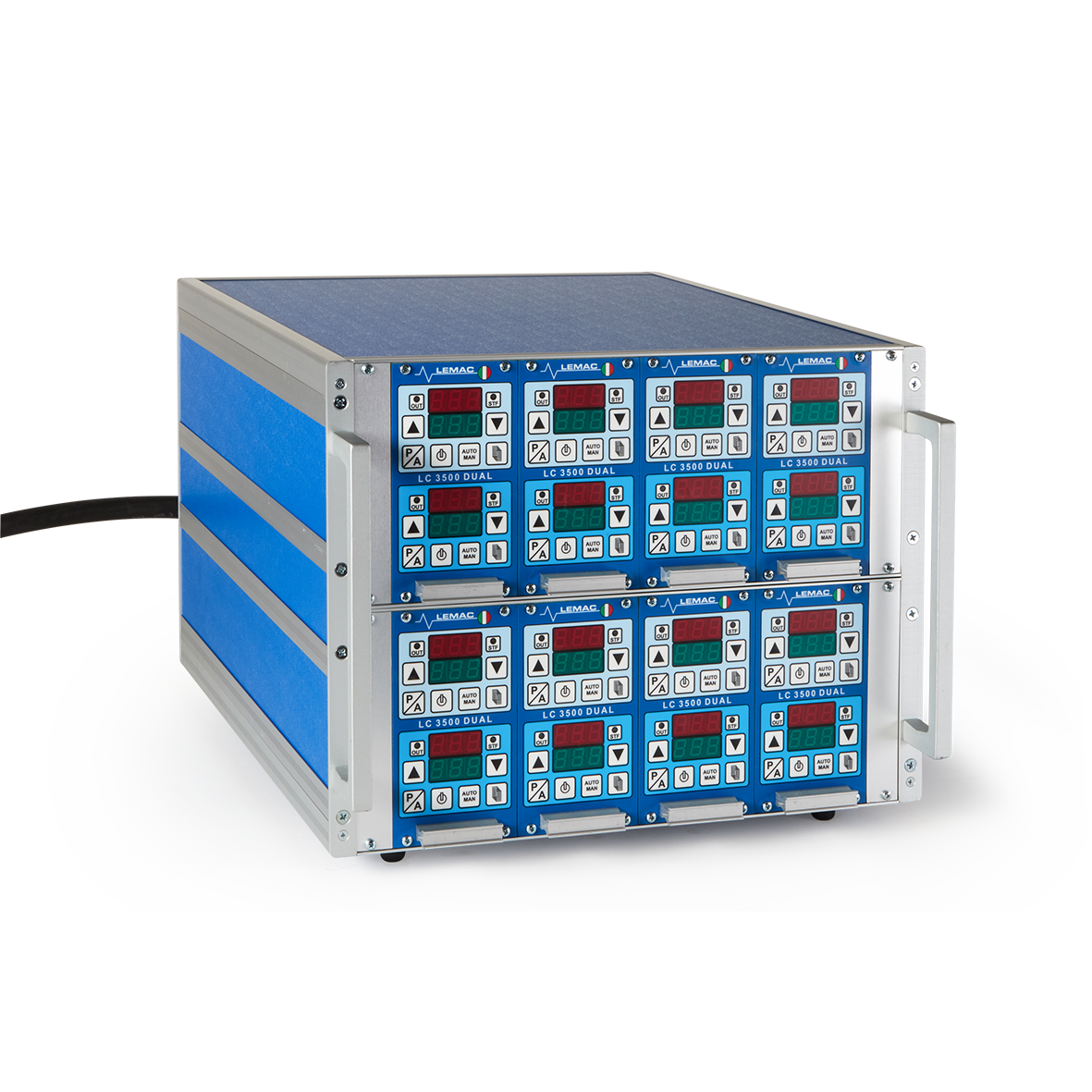

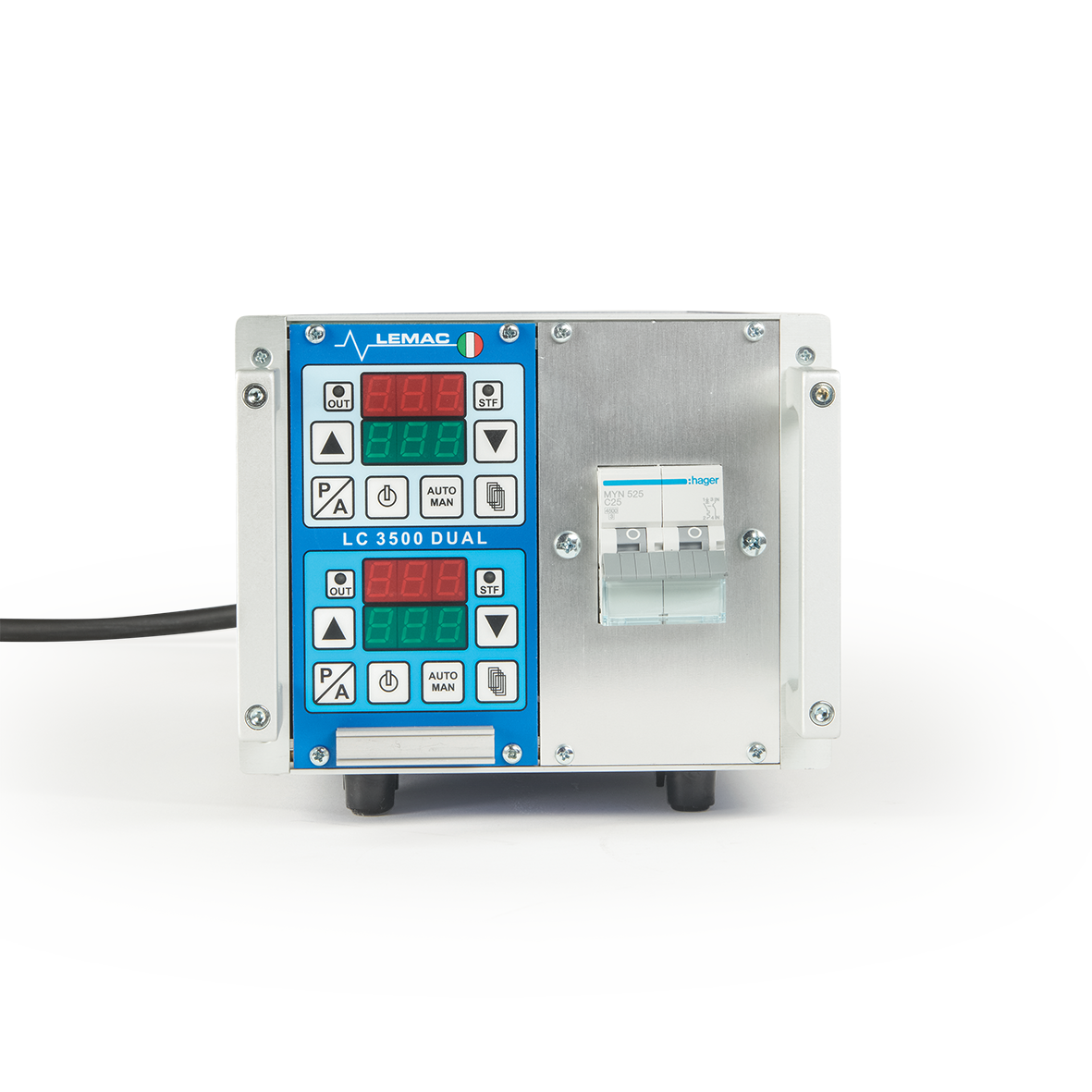

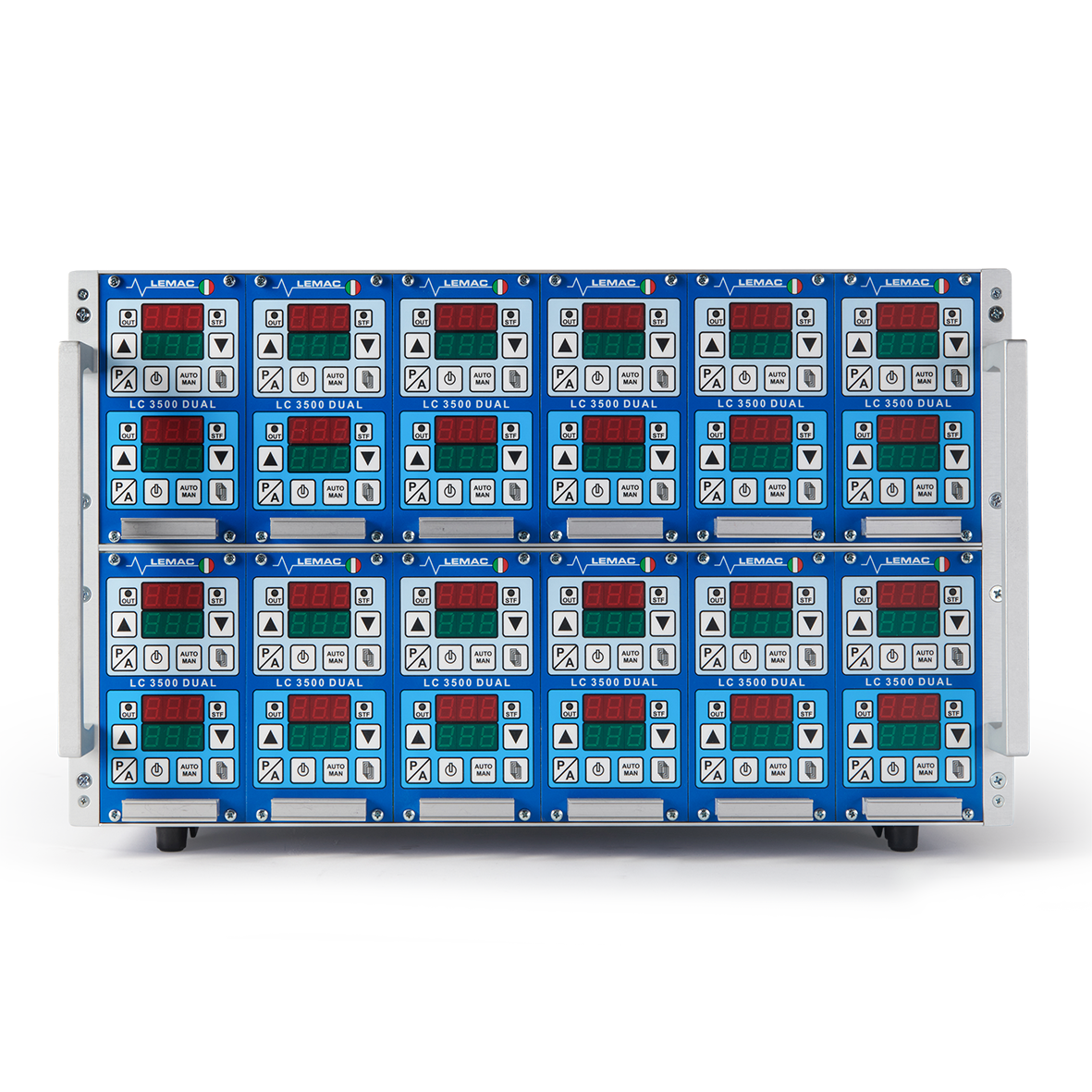

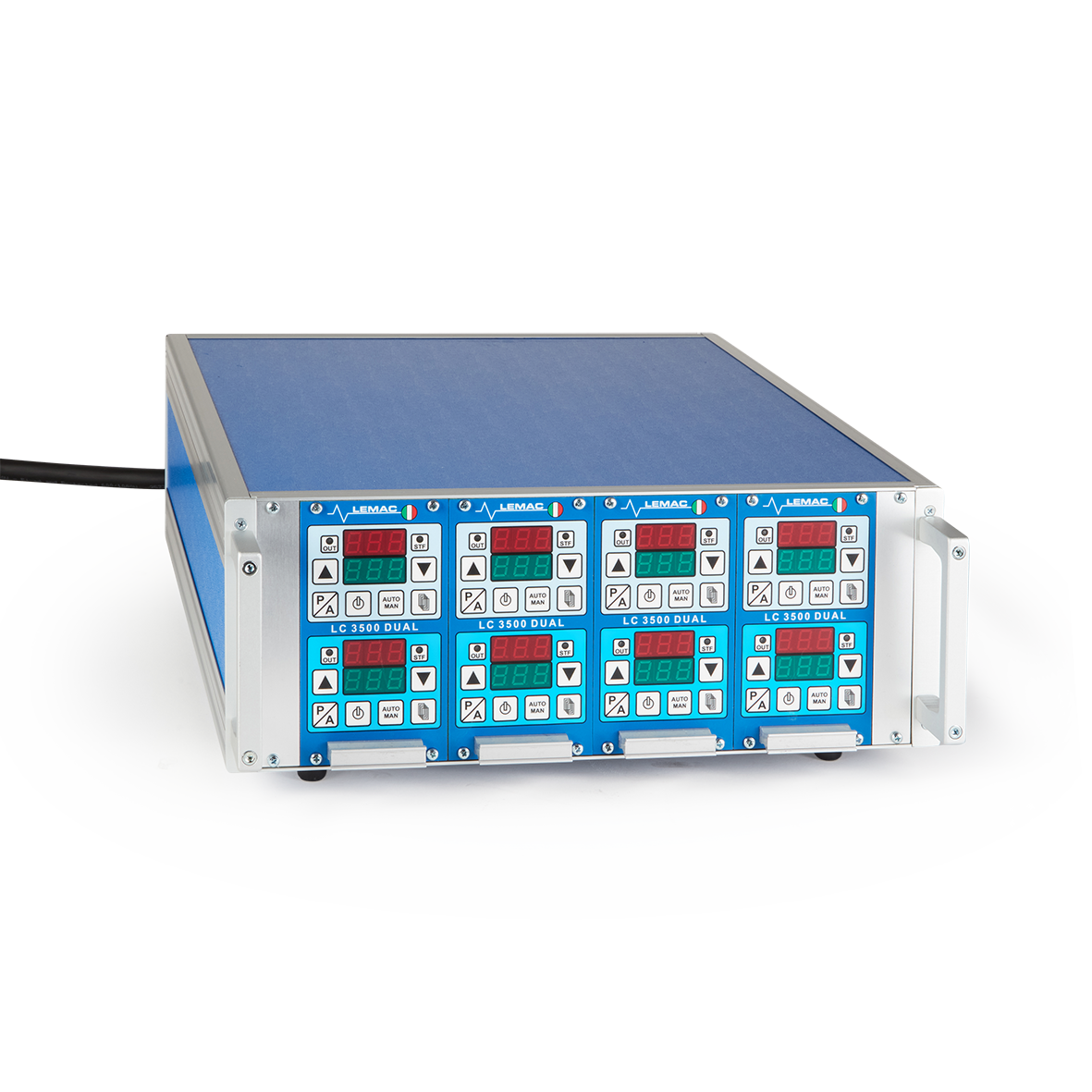

It is possible to create cabinets composed of a modular number of zones, generally in multiples of 12, but it is also possible to compose cabinets in multiples of 8 (up to 16).
OPTIONS
Socket x datalog interface pcs(industry 4.0).
Input 1 (signal coming from the press) reads the regulators
Input 2 (signal coming from the press) to send the regulators to stand-by temperature
Input 3 (signal coming from the press) switches the regulators off
Out machine consent when all zones are at temperature.
All alarms generated by the controller are given a N.O. contact signal.
DIMENSIONS
175X150X400 mm
245X150X400 mm
360X150X450 mm
360X150X450 mm
460X150X450 mm
360X300X450 mm
460X300X450 mm
500X450X450 mm
570X630X450 mm

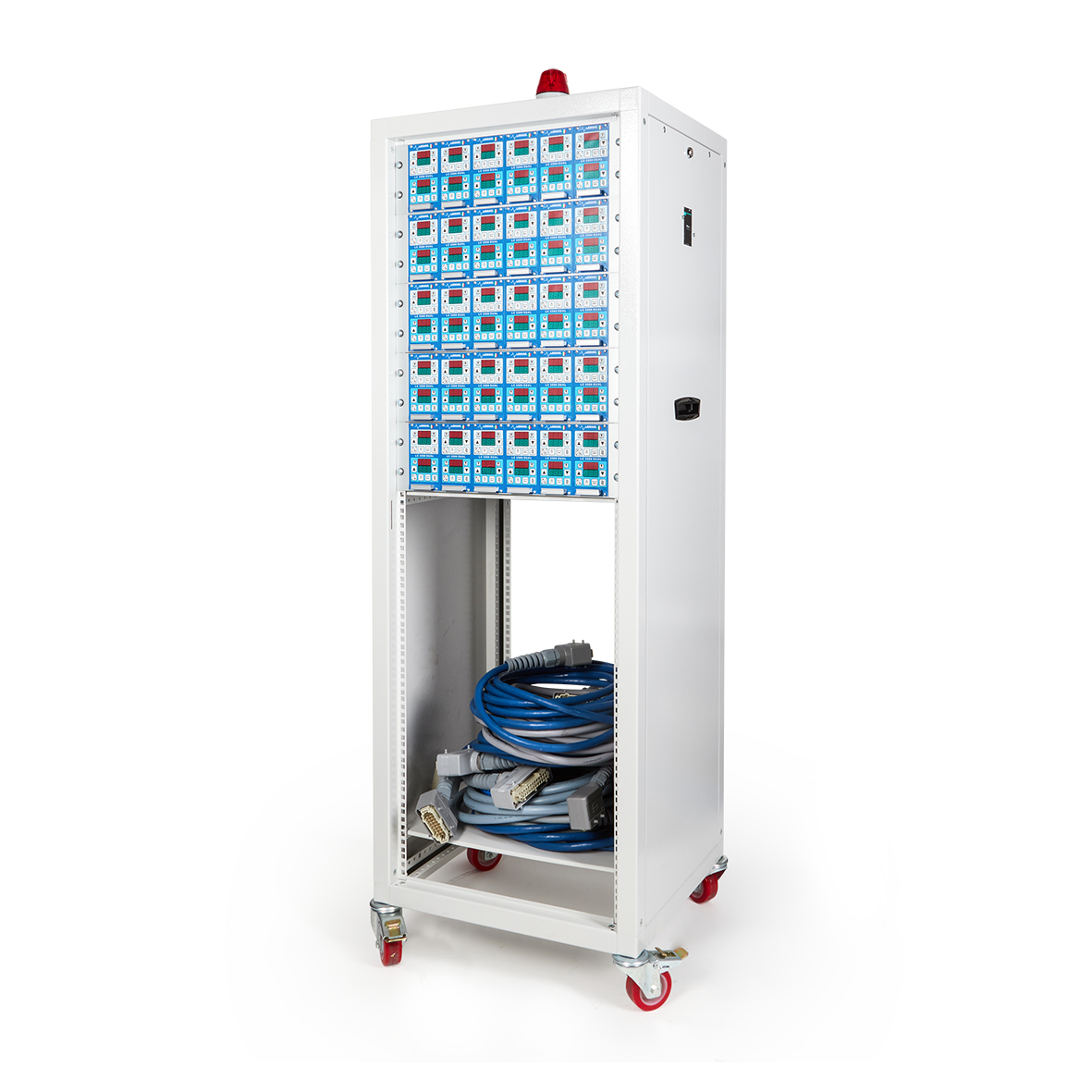

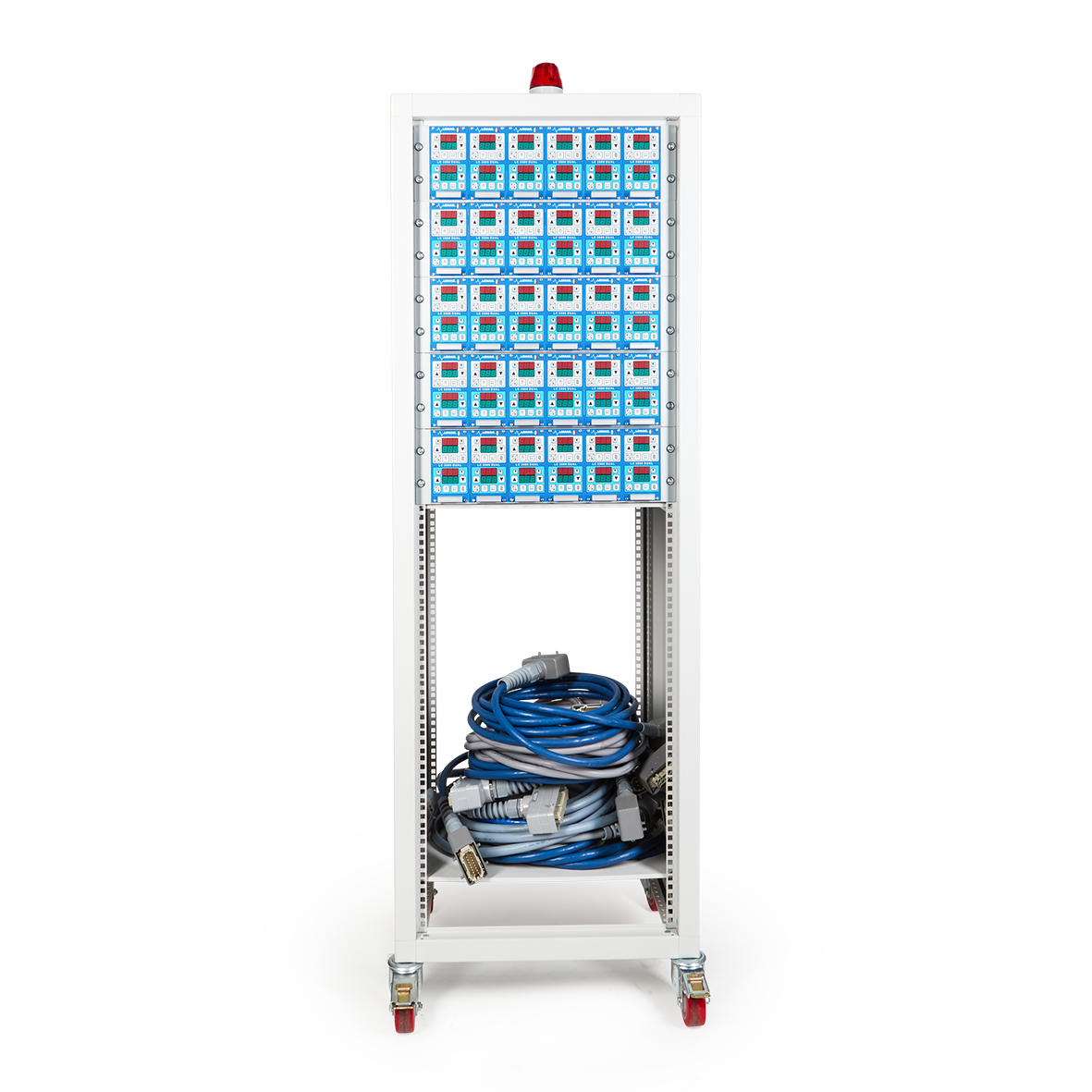

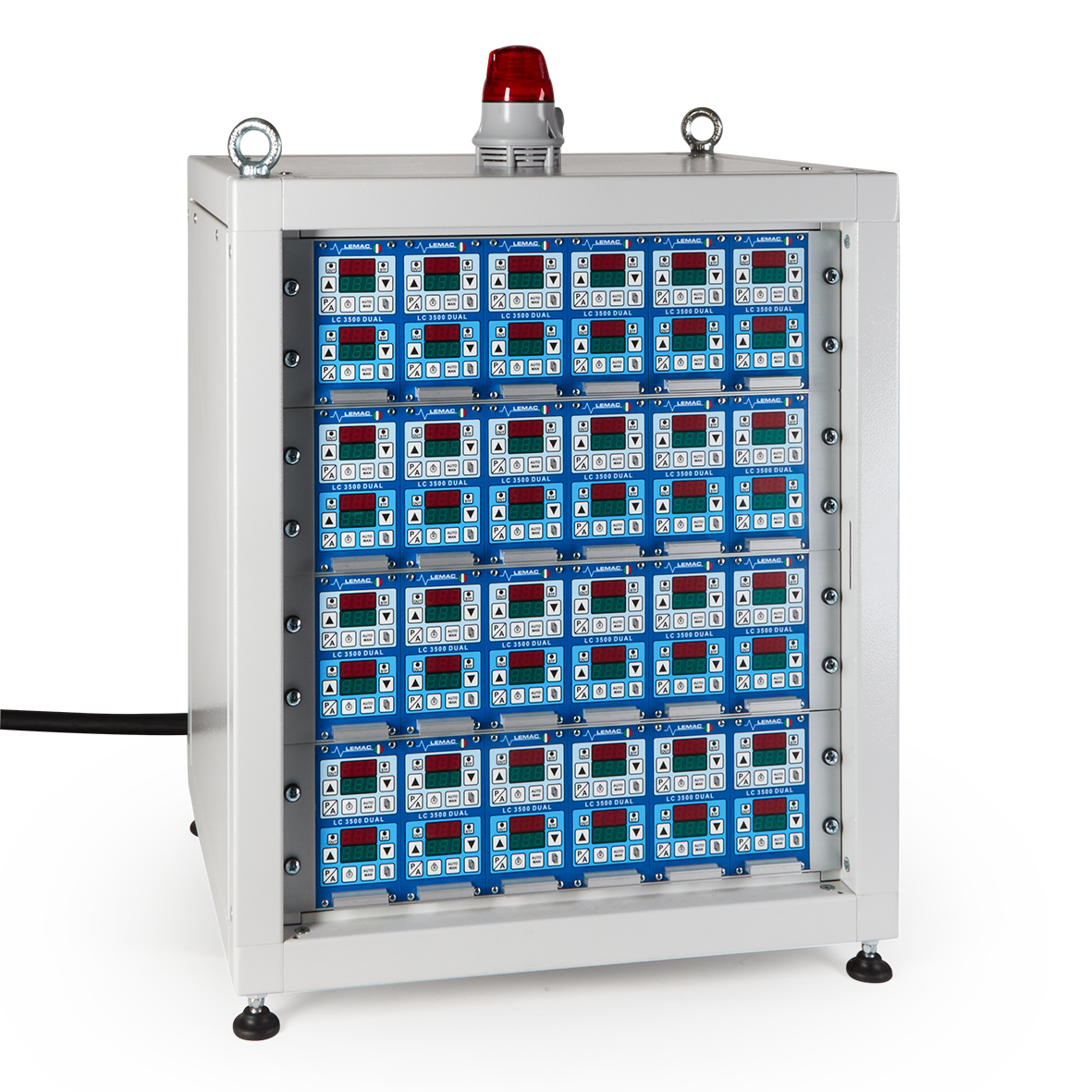

570X690X450 mm o Wheeled cabinet 570x1180x450 mm shelf at 690 mm
